Installing the pressure line between the air conditioning compressor and the air conditioning condenser
- Replace O-rings.
Parts: O-rings

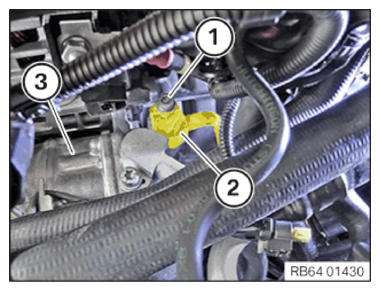

- Feed in and correctly position the pressure line (2) between the air conditioning compressor and the air conditioning condenser.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant lines to air conditioning condenser/connecting piece | ||
|---|---|---|
| M6 | Tightening torque | 13 Nm |
- Attach pressure line (2) to air conditioning compressor (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line on air conditioning compressor | ||
|---|---|---|
| M8 | tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE BRACKET FOR THE DME CONTROL UNIT .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to EVACUATE AND CHARGE CONDITIONING .
