- Guide the high pressure line (2) and low pressure line (4) out and upwards.
- Mount the special tool 2 286 732 on the high pressure line (2) of the air conditioning compressor and secure with the screw on the side of vehicle (1).
- Mount the special tool 2 286 730 on the low pressure line (4) of the air conditioning compressor and secure with the screw on the side of vehicle (5).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line on air conditioning compressor |
| M8 |
tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Preparing the connection to the A/C service station:
- Connect the high pressure line of A/C service station (3) to high-pressure connection of special tool 2 286 732.
- Connect the low pressure line of the A/C service station (6) to the low pressure connection of the special tool 2 286 730.

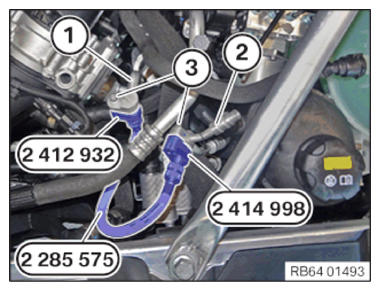

- Mount the special tool 2 412 932
on to the refrigerant line (1).
- Mount the special tool 2 414 998
on to the refrigerant line (2).
- Use the screws (3) from the refrigerant lines that were removed earlier for mounting the air conditioning condenser.
- Tighten the screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant lines to air conditioning condenser/connecting piece |
| M6 |
tightening torque |
13 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Connect special tools 2 412 932
and 2 414 998
using special tool 2 285 575.
- Mount the special tool 2 420 896 instead of expansion valve 1 as shown and secure with the screws on the side of vehicle (1) of the removed expansion valve 1.
TIGHTENING TORQUE SPECIFICATIONS
| Expansion valve to heater - A/C |
| M5 |
tightening torque |
5.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Mount the refrigerant lines (3) on the special tool 2 420 896 and secure them with the nut on the side of vehicle (2).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line to expansion valve/connecting piece |
| M6 |
tightening torque |
13 Nm |

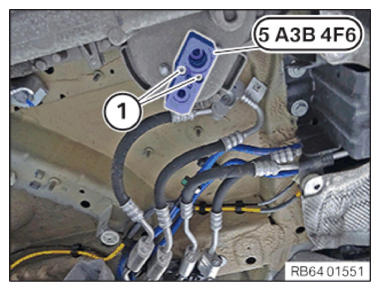

- Mount the special tool 5 A3B 4F6
instead of expansion valve 2 as shown and secure with the screws (1) of the expansion valve 2.
TIGHTENING TORQUE SPECIFICATIONS
| Expansion valve to high-voltage battery unit |
| M5x40 screw |
tightening torque |
5.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

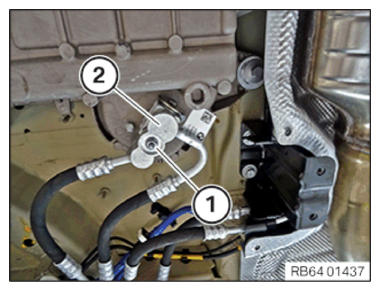

- Fit refrigerant line (2) and position it correctly.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line to expansion valve/connecting piece |
| M6 |
tightening torque |
13 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

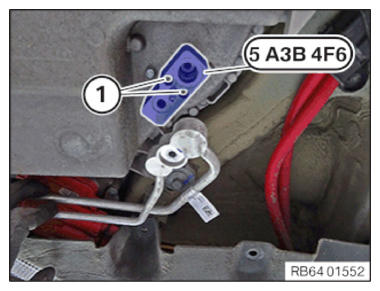

- Mount the special tool 5 A3B 4F6
instead of expansion valve 3 as shown and fasten it with the screws (1) of expansion valve 3.
TIGHTENING TORQUE SPECIFICATIONS
| Expansion valve to high-voltage battery unit |
| M5x40 screw |
tightening torque |
5.5 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

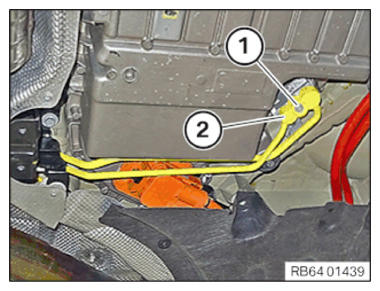

- Carefully attach the refrigerant line (2) and position it correctly.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line to expansion valve/connecting piece |
| M6 |
tightening torque |
13 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

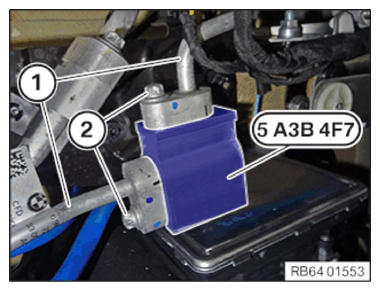

- Install the special tool 5 A3B 4F7
instead of the refrigerant shutoff valve.
- Fit the refrigerant lines (1).
- Tighten the screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line to shutoff valve |
| M6 |
tightening torque |
13 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
