Removing air duct for the radiator

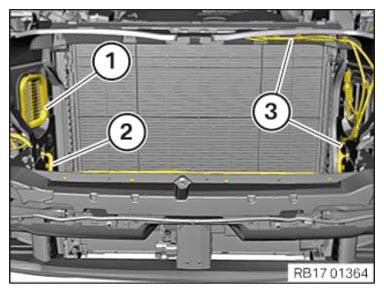

Unlock and remove the mesh (1), if necessary remove it on both the sides.
Detach the wiring harnesses (2) and (3) from the air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

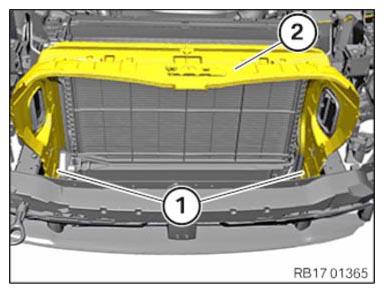

Unlock the locks (1).
Slide the upper air duct (2) for the radiator upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

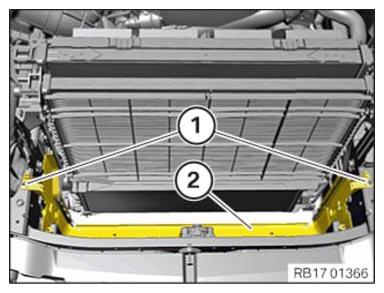

Detach the expanding rivets (1) from the lower air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

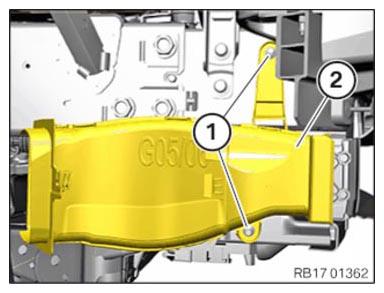

Loosen the expanding rivet (1).
Slide the right-hand brake air duct (2) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

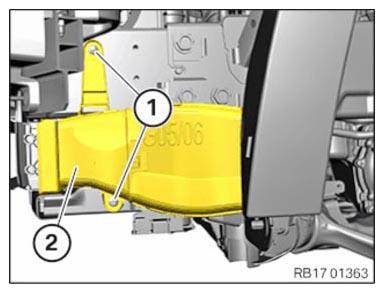

Loosen the expanding rivet (1).
Slide the left-hand brake air duct (2) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

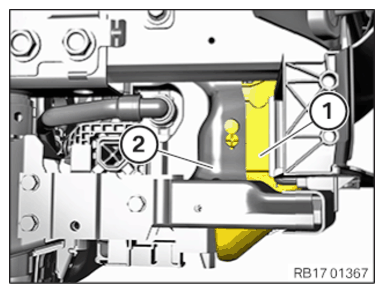

Slide the lower air duct (1) out of the right-hand holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

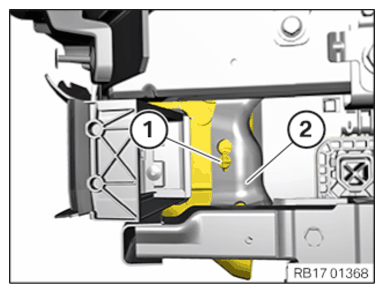

Slide the lower air duct (1) out of the left-hand holder (2).
Slide lower air duct (1) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
