Remove trailing link at spring bolt
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

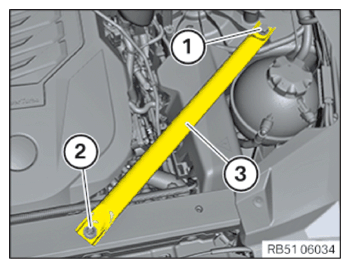

- Loosen screws (1) and (2).
- Remove tension strut (3) at the shock tower upwards.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
