Installing the switch block in the center console

• Connect available connectors.

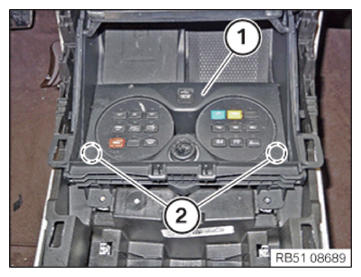

• Position the switch block (1) and clip it in the latch mechanisms in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
