Dismounting ventilation elbow

Removing ventilation elbow

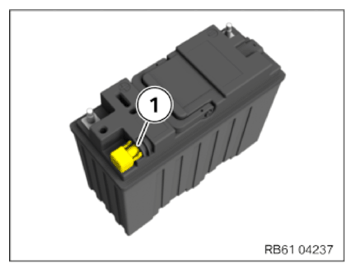

• Unclip and remove the ventilation elbow (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing ventilation elbow

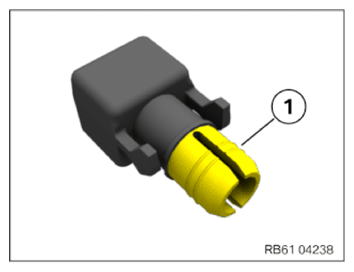

• Check the detent (1) for damage, replace ventilation elbow if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the ventilation elbow (1) and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.
