Remove power distributor on the rear positive battery cable

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING (ELECTRICAL ROLLER COVER FOR LUGGAGE COMPARTMENT) .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to REMOVING THE RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (WITHOUT THIRD-ROW SEATING) .

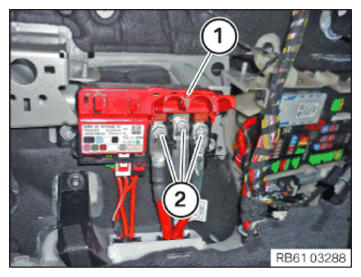

• Unfold the cover (1).
• Release the nut (2) and remove the associated positive battery cables.

  Courtesy of BMW OF NORTH AMERICA, INC.

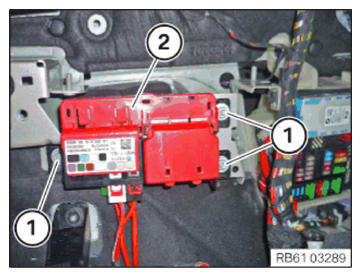

• Loosen nuts (1).
• Take off the power distribution of the positive battery cable (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

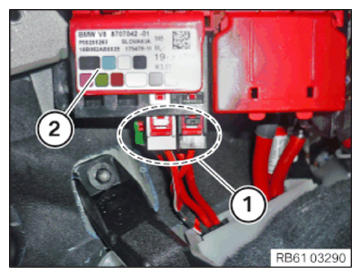

• Unlock and disconnect all connectors (1).
• Take off the power distribution of the positive battery cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.
