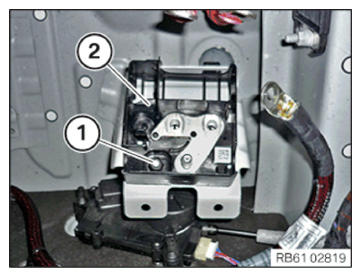

Installing the rear power distribution (luggage compartment floor)

• Position the power distribution box (2).
• Tighten plastic nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Power distribution box, rear
  Plastic nut with flange	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

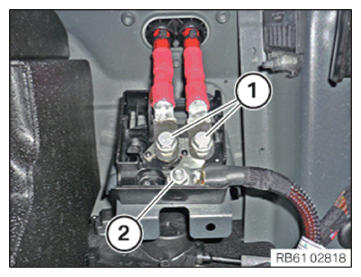

• Position the positive battery cable on the power distribution.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Positive battery cable to power distribution box
  M8 screw	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the nut (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Positive battery cable
  Positive pole screw	tightening torque	15 Nm

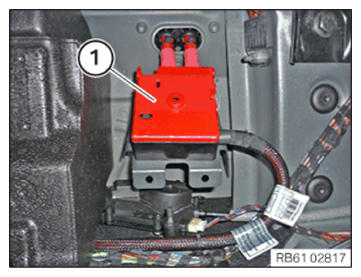

• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING ALL BATTERY GROUND LEADS .
