Install the front power distribution box

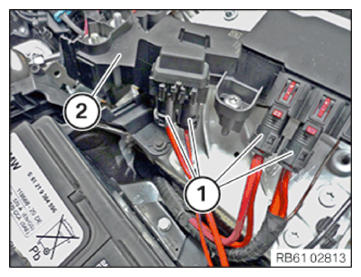

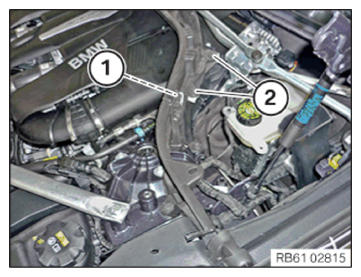

• Connect the connector (1) to the power distribution box (2) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

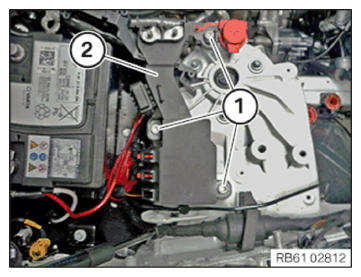

• Position the power distribution box (2).

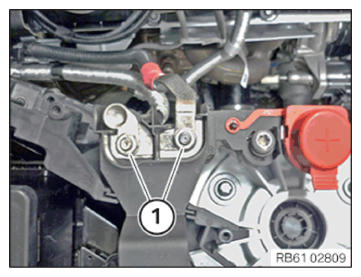

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Power distribution to shock tower
  M8 screw	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

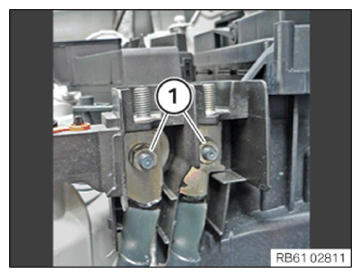

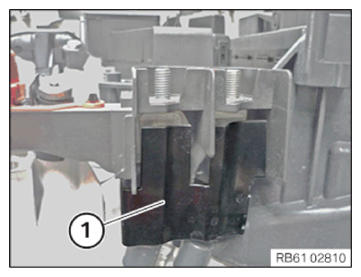

• Feed in the associated cable and tighten the nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Auxiliary terminal for jump starting
  Flange nut M8	Tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

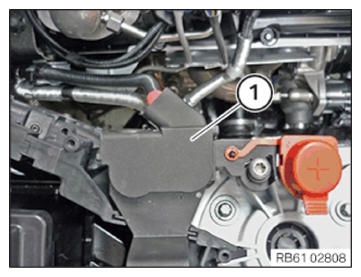

• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the associated cable and tighten the nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Auxiliary terminal for jump starting
  Flange nut M8	Tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

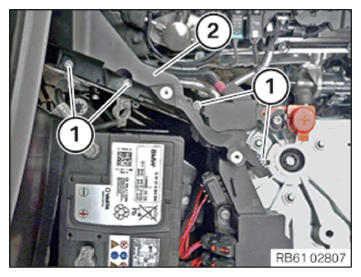

• Position sealing frame (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front power distribution box sealing frame
  5x25 screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

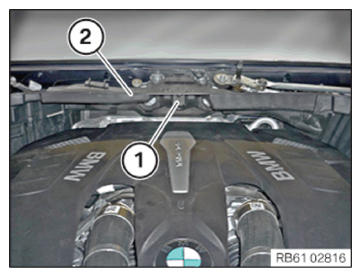

• Position the center cowl upper part (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cowl upper part center to bottom cowl
  Screw	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cowl upper part center to bottom cowl
  Screw	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

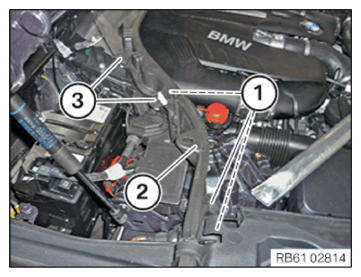

• Position right cowl upper part (2).
• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Cowl upper part center to bottom cowl
  Screw	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).

Follow-up work

• Refer to INSTALLING THE RIGHT STRUT BRACE .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
