Installing the tailgate lock of the upper trunk lid

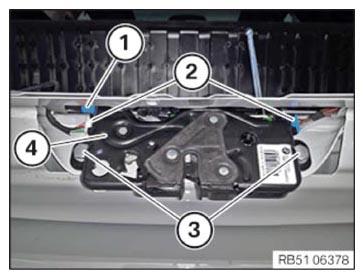

- Install the tailgate lock (4).
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Trunk lid lock | ||
|---|---|---|
| Screw | tightening torque | 19 Nm |
- Connect both connectors (2).
- Attach the Bowden cable (1).
Follow-up work
- Refer to INSTALLING BOTTOM TAILGATE TRIM PANEL .
- Refer to INSTALLING THE BOTTOM TRUNK LID LOCK SWITCH .
