Preparing New Parts

Replacing the coarse thread bolts and threaded weld bolts, surface steel

• Take the number and position from the component to be replaced or the installed parts.
• Replace the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts:  Coarse thread bolt (1), threaded weld bolt (2)

• Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Further information is available.

  Prepare new parts, left side rail

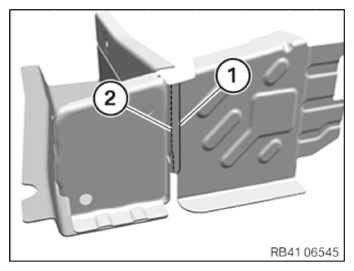

• Perform the separating cut (1) at the new part with a material allowance of approx. 5 mm for the separating cut (2) on the vehicle.

  Prepare the new part in the separating cut area for installation with an overlap of approx. 5 mm. To do this, slightly adjust the new part in the area of the overlap.

  Courtesy of BMW OF NORTH AMERICA, INC.

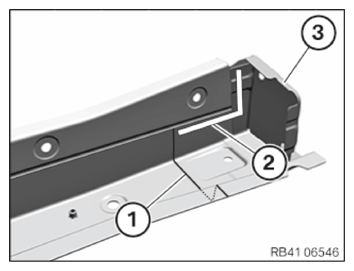

• Make separating cut (1) on new part in accordance with separating cut on vehicle.
• Release the welded connections in the area (2) and remove the component that is not required (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust new parts to fit with alignment bracket or universal mount and secure.

  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... WELDING IN REINFORCEMENT PLATE (SHEET STEEL) (ALL X5 MODELS, 2019-2022) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare a reinforcement plate (1) for the separating cut (2).
• In the area of the overlapping separating cut, prepare a MAG weld seam (1) that is approx. 15 mm long.
• Prepare the areas (2) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare for joining by welding in areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the areas (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Prepare new parts, back luggage compartment floor

  Further information is available.

• Adjust the new part in conjunction with the tail panel and secure.
• Prepare area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Preparing new parts, left side luggage compartment floor

  Further information is available.

• Prepare the new parts in area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Adhesive technology in the area of the outer skin (not for structural adhesion):
  The bonding surfaces of the new parts may not sharpened or ground.
  For more information see 4100... BMW/MINI BONDING INSTRUCTIONS (ALL X5 MODELS, 2019-2022) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust luggage compartment floor together with the tail panel and secure.
• In areas (1) to (3), prepare for joining using the bonded rivet method.
• In areas (1) to (3) drill out 12 bores of dia. 4.2 mm for blind rivets.

  Area	Number
  1	4
  2	3
  3	6

• Prepare the joints in areas (1) and (2) using the bond-and-rivet method.
• In areas (1) and (2) drill out 5 bores to dia. 4.2 mm for blind rivets.

  Area	Number
  1	3
  2	2

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare area (1) for joining by glue rivet method.
• In area (1) drill out 3 bores dia. 4.2 mm for blind rivets.
• Prepare area (2) for joining by welding.
• Remove new component. Deburr bores.

  Courtesy of BMW OF NORTH AMERICA, INC.
