Install Engine Mount In Front Of Cowling With Wheel Arch

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATIONS

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATIONS

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 to the bonding surfaces.
ADHESIVE SPECIFICATIONS

Body adhesive K1 195 ml 83190413015
Install the new parts with an alignment bracket or a universal mount.
During installation, ensure that sufficient adhesive has been applied to the bonding surfaces.
Rivet the new parts in areas (1) and (2) with 3 blind rivets N1.
CONSUMABLE SPECIFICATIONS

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in the areas (1) and (2) with blind rivets N2.
CONSUMABLE SPECIFICATIONS

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in the area (1) with blind rivets N1.
CONSUMABLE SPECIFICATIONS

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Clean bonding surfaces (1) and (2) on vehicle and on new part with cleaning agent R2 and R1.
Apply adhesive K1 to the bonding surfaces.

Install the new part and rivet it in the area (1) with blind rivets N1.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

Rivet the new parts in the area (2) with blind rivets N2.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Weld the new part in the areas (3).
Avoid excessive application of heat to adhesive areas

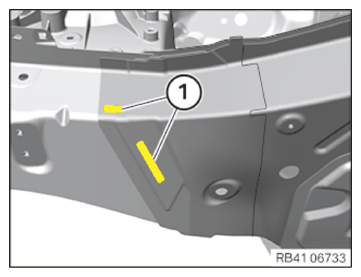

Weld the new part in the area (1).
Avoid excessive application of heat in this process.

The cowling crossmember (2) is filled with hardly inflammable cavity foam.
In case of smoke formation: Stop the welding procedure and cool the welded area with compressed air if applicable.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the holder (1) and rivet it in the area (2) with N1 blind rivets.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new part in the area (1) with blind rivets N1.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new part in the area (1) with blind rivets N1.

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

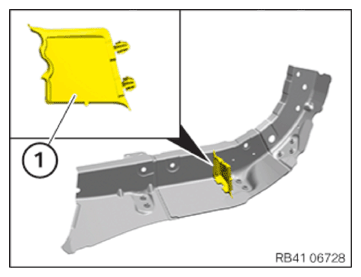

Apply sealant D1 to the cavity sealing (1). Install the cavity sealing (1) on the new part of the carrier support.
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
Preclean all bonding surfaces with solvent cleaner R2.
CONSUMABLE SPECIFICATIONS

Cleaning agent R2 500 ml 83190417324
Clean all bonding surfaces with solvent cleaner R1.
CONSUMABLE SPECIFICATIONS

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 to bonding surfaces.
ADHESIVE SPECIFICATIONS

Body adhesive K1 195 ml 83190413015
Install the new part of the carrier support with an alignment bracket or a universal fixture.
During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.
Also make sure that there is enough adhesive in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet new parts in the areas (1) and (2) with blind rivets.

In area (1), use blind rivets N2.

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

Courtesy of BMW OF NORTH AMERICA, INC.

In area (2), use 2x blind rivets N1. Only set the front two blind rivets (3).

CONSUMABLE SPECIFICATIONS

Blind rivet N1	83190301414
Ø 6.5 mm; clamping area 2.8-4.8 mm

Rivet the new parts in areas (1) and (2) with punch rivets N5.

The number and position of the punch rivets can be found on the series part.

CONSUMABLE SPECIFICATIONS

Punch rivet N5	83192158079
Ø 5 mm; 5 mm long

Courtesy of BMW OF NORTH AMERICA, INC.

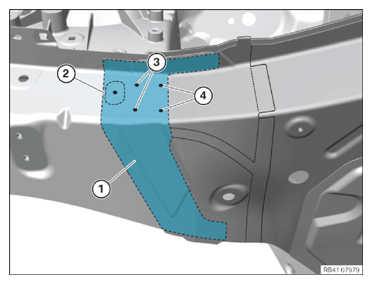

Pre-clean the bonding surface (1) with solvent cleaner R2 and clean with solvent cleaner R1.
Apply adhesive K1 to the bonding surface (1) and install the new part.

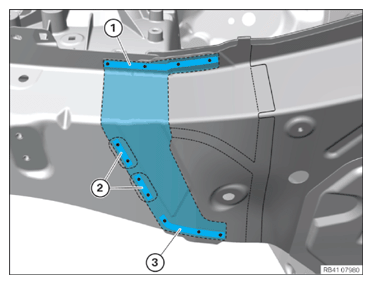

Rivet the new part in areas (2) to (4) with blind rivets.

Area	Description
2	N7
3	N2
4	N7

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Blind rivet N7	83192240352
Ø 6.5 mm; clamping area 1.5 - 3.5 mm

CONSUMABLE SPECIFICATIONS

Blind rivet N2	83190301419
Ø 6.5 mm; clamping area 4.8-6.8 mm

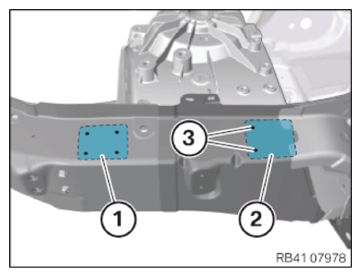

In areas (1) to (3), rivet the new part with punch rivets N5.

Area	Number
1	4
2	4
3	3

CONSUMABLE SPECIFICATIONS

Punch rivet N5	83192158079
Ø 5 mm; 5 mm long

Courtesy of BMW OF NORTH AMERICA, INC.

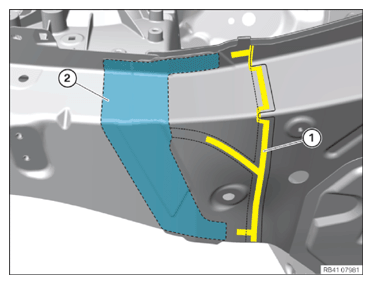

Weld the new part in area (1).
In this process, avoid excessively high heat input at the adjacent bonded rivet areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw
Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
Screw in the EMC screw.
Seal the EMC screw with the sealant.
CONSUMABLE SPECIFICATIONS

Sealant D1 (seam sealing) 310 ml 83422409985

Mount two EMC screws in areas (1).

CONSUMABLE SPECIFICATIONS

screw	83190301639
EMC screw, SF Plus, M5x15

Courtesy of BMW OF NORTH AMERICA, INC.

After the adhesive has hardened (1) install 3 EMC screws in the areas.

CONSUMABLE SPECIFICATIONS

screw	83190301639
EMC screw, SF Plus, M5x15

Courtesy of BMW OF NORTH AMERICA, INC.

Install an EMC screw in area (1).

CONSUMABLE SPECIFICATIONS

screw	83190301639
EMC screw, SF Plus, M5x15

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
