Body Equipment - Repair (3 Of 3) -- X5 (G05)
>>
51 75 UNDERSHIELD
>>
51 75 401 Removing and installing/replacing the protective plate of the transmission (all X5 models, 2019-2022)
>>
Removing the protective plate on the transmission
Removing the protective plate on the transmission

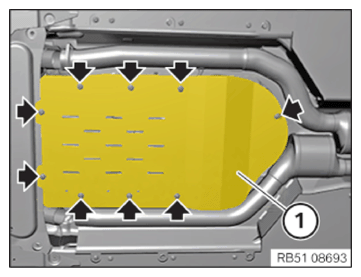

Remove screws (arrows).
Feed out and remove the protective plate (1).
