Installing front brake pads

Check

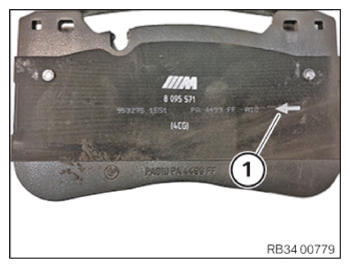

• Is there an arrow (1) on the new brake pads for the direction of rotation?

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Yes, an arrow (1) is present.

Measure

• Brake pads must be installed in the direction of rotation.
• Insert and position the brake pads in the brake caliper.

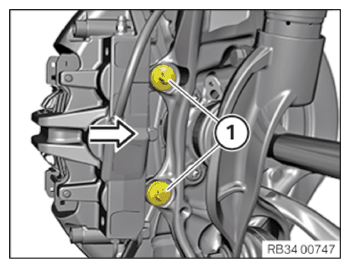

• Mount the brake caliper in the arrow direction.
• Replace screws (1).

  Parts:  Screws

• Insert screws (1) and tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

• Push the locking pins (1) in the arrow direction up to the stop.

  If necessary, press the brake pads against the spring force of the retaining spring.

Courtesy of BMW OF NORTH AMERICA, INC.
