Fuse And Relay Location -- (X5 G05 & X5 M F95)
>>
Fuse And Relay Location (X5 G05 & X5 M F95)
>>
Z3 Fuse box
Z3 Fuse box

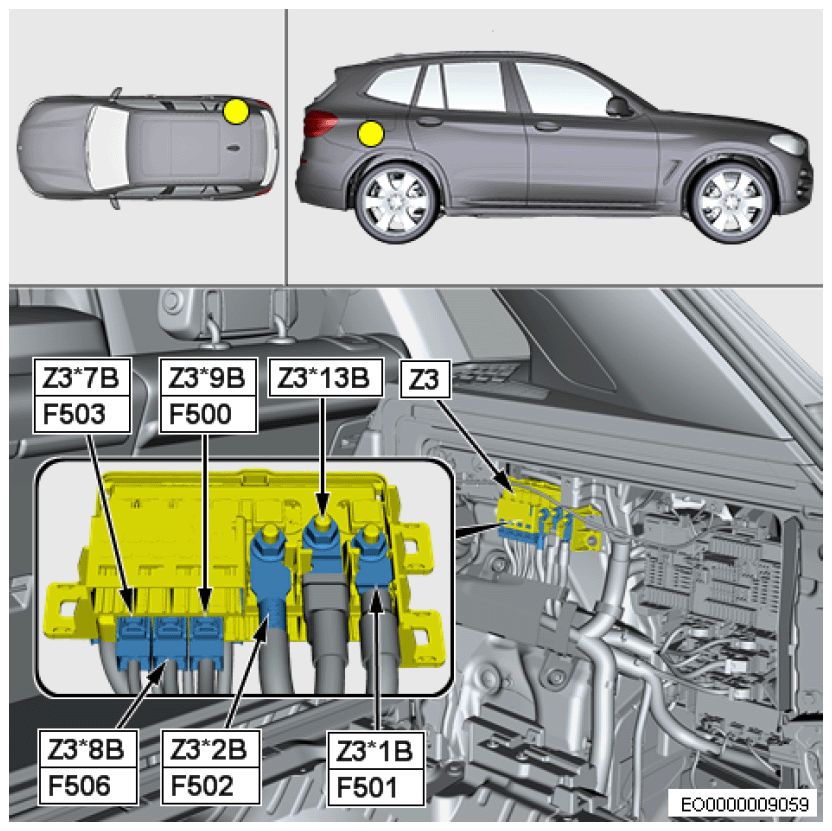

Fig 1: Z3 Fuse Box Fuse/Relay ID'S Location (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

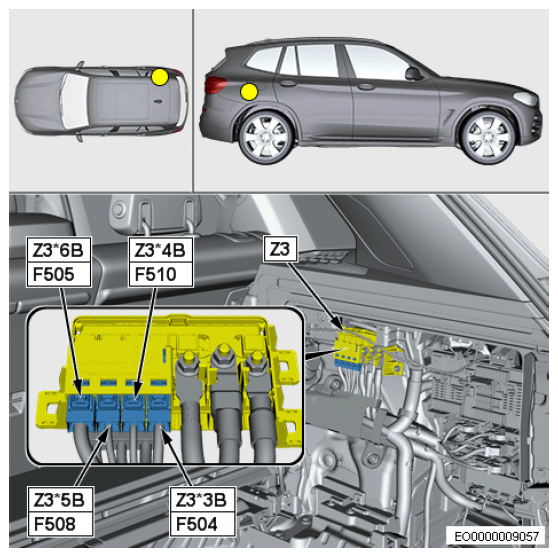

Fig 2: Z3 Fuse Box Fuse/Relay ID'S Location (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
