Fuse And Relay Location -- (X5 G05 & X5 M F95)
>>
Fuse And Relay Location (X5 G05 & X5 M F95)
>>
Z2a Power distribution box, rear
Z2a Power distribution box, rear

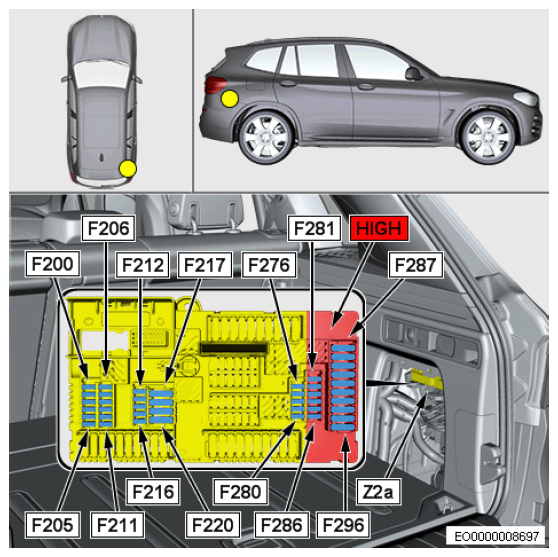

Fig 1: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (1 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

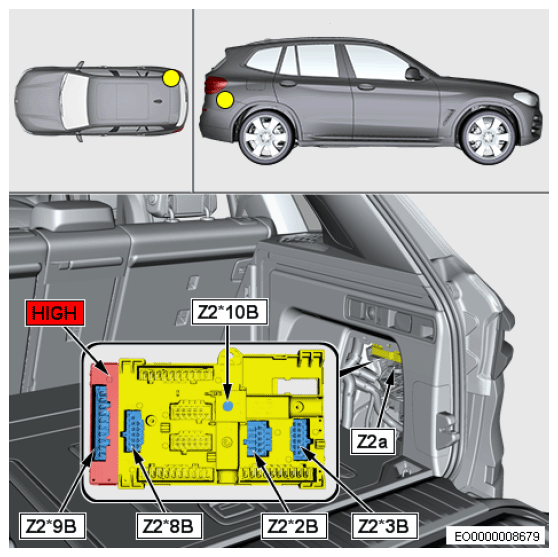

Fig 2: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (2 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

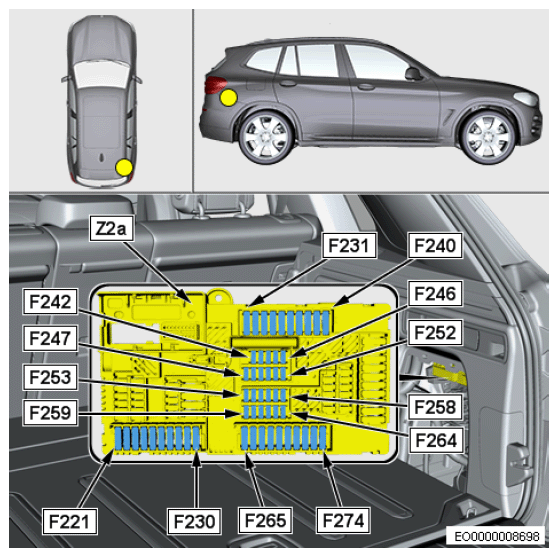

Fig 3: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (3 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

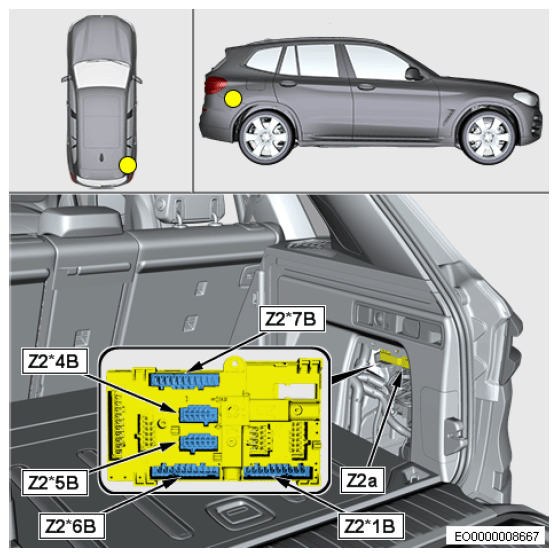

Fig 4: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (4 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
