Partially release the engine oil cooler

Precondition

The front assembly protection is removed.

WARNING: Hot surfaces.
Risk of burning!

NOTE: TECHNICAL INFORMATION
Work must be carried out carefully in order to avoid component damage.

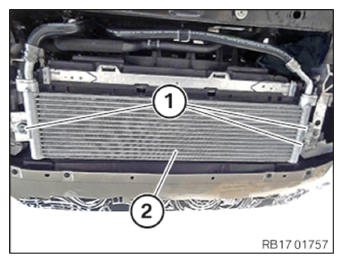

Loosen screws (1).
Guide out engine oil cooler (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
