Blocking the engine in the TDC firing position

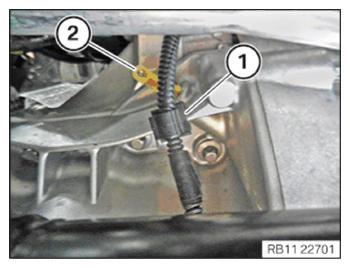

Loosen clamp (1).
Feed out and remove the sealing cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive, b) applies only if the timing chain is installed in the rear.
Courtesy of BMW OF NORTH AMERICA, INC.

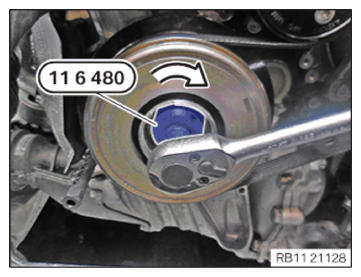

Turn the engine in the arrow direction to the TDC firing position of cylinder 1 using special tool 0 493 380 (11 6480).
Vehicles with automatic transmission:
Dimension (X) = 66 mm

Special tool 2 288 380 must be inserted into the dowel hole up to dimension (X).

Courtesy of BMW OF NORTH AMERICA, INC.
Vehicles with automatic transmission:

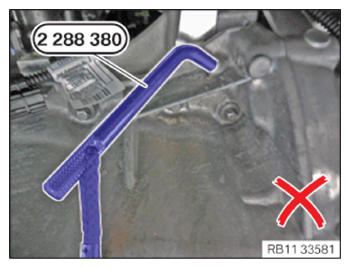

The special tool 2 288 380 is incorrectly positioned.

TDC firing position of cylinder 1 not achieved.

Courtesy of BMW OF NORTH AMERICA, INC.
Vehicles with automatic transmission:

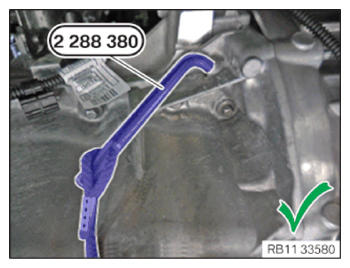

The special tool 2 288 380 is correctly positioned.

Engine is in TDC firing position of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.
Vehicles with manual gearbox:
Dimension (X) = 61 mm

Special tool 2 288 380 must be inserted into the dowel hole up to dimension (X).

Courtesy of BMW OF NORTH AMERICA, INC.
Vehicles with manual gearbox:

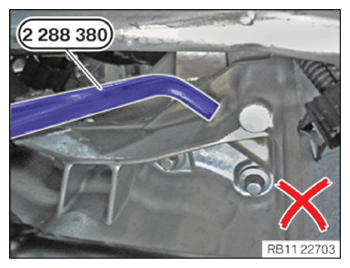

Special tool 2 288 380 incorrectly positioned.

TDC firing position of cylinder 1 not achieved.

Courtesy of BMW OF NORTH AMERICA, INC.
Vehicles with manual gearbox:

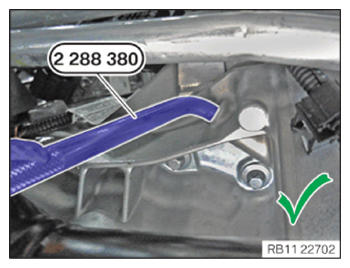

Special tool 2 288 380 correctly positioned.

Engine is in the TDC firing position of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Alternative to the new special tool 2 471 127 , the already present special tool 2 456 372 can be used in modified form.
The modified special tool is upward compatible.

Courtesy of BMW OF NORTH AMERICA, INC.

Keep set of special tools 2 471 127 at hand:

Number	Description
1	Basic carrier
2	Setting gauge for adjusting the intake camshaft
3	Setting gauge for adjusting the exhaust camshaft
4	Screws for connecting the basic carrier to the cylinder head
5	Screws for connecting the gauge to the basic carrier

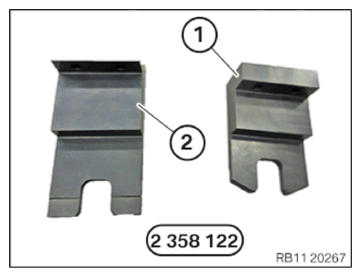

Provide test gauges from the set of special tools 2 358 122:

Number	Description
1	Test gauges for fixing in place the intake camshaft
2	Test gauges for fixing in place the exhaust camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the marks (1) on the intake camshaft (E) and the exhaust camshaft (A) can be read from above.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the cam (1) on the exhaust camshaft on cylinder 1 points to the inside right at a slight angle.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the cam (1) on the intake camshaft on cylinder 1 points to the inside left at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure that the flattened areas (1) on the intake camshaft and the exhaust camshaft point upward.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the basic carrier (1) from the set of special tools 2 471 127 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) from the set of special tools 2 471 127 on the basic carrier (2).

TIGHTENING TORQUE SPECIFICATION

Basic carrier to cylinder head
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the test gauge (1) from the set of special tools 2 358122 between the intake camshaft and the basic carrier from the set of special tools 2 471 127.
Position the test gauge (2) from the set of special tools 2 358122 between the exhaust camshaft and the basic carrier from the set of special tools 2 471 127.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Test gauge to basic carrier
M6	Tightening torque	8 Nm
