Installing the connecting brackets on the exhaust turbocharger for the cylinders 4 to 6

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

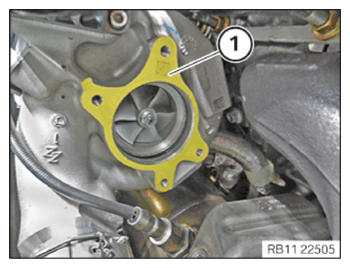

Clean the sealing surface (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the sealing surface (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

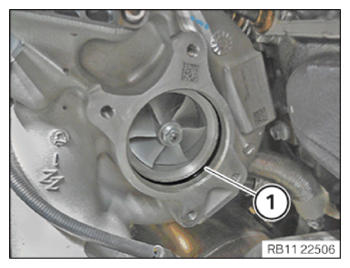

Check the sealing ring (1) for damage and replace the sealing ring (1) as needed.
Wet sealing ring (1) with approved lubricant grease.
INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install the connecting bracket (2) for cylinders 4 to 6.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Connecting brackets on exhaust turbocharger
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the heat shield (1) for damage, replace heat shield if necessary (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
M8X17.5 Replace screws.	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check seal (1) for damage; replace seal (1) is necessary.
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

NOTE: TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Remove damaged seal.
Clean the gasket groove (1) with a dry cloth.
The gasket groove (1) must be clean.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket.
Parts: Gasket
Install the seal dry without lubricant or mounting agent.
NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Thread in seal and install.
Make sure that the seal is installed correctly in the gasket groove (1).
Make sure that the sealing lip (2) is directed to the inside as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach locks (1) from the holders in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

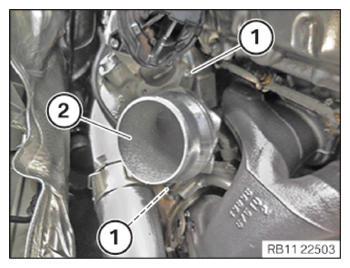

Guide in the clean air pipe (2) for cylinders 4 through 6 and install it.
Ensure that the locks (1) lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the right air routing (2) in the arrow direction and install it.
The clamps (1) must snap in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING INTAKE FILTER HOUSING .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
