Replacement: Remount the thermostat and the support of the charge air line

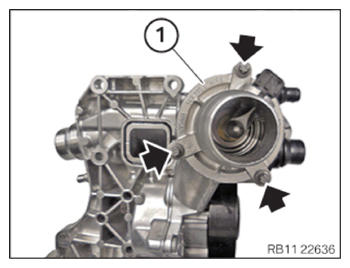

Remove screws (arrows).
Guide out and remove the thermostat (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

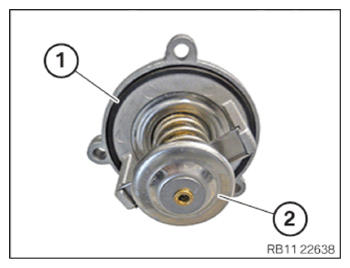

Replace the sealing ring (1) on the thermostat (2) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

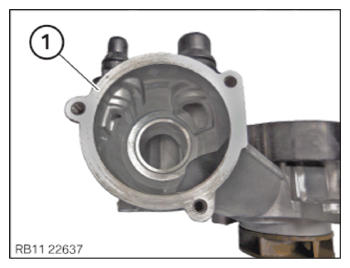

Make sure that the sealing surface (1) is free of oil, grease and cleaning agents.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install thermostat (1) .

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Coolant thermostat to coolant pump
M6X25	Tightening torque	8 Nm

G14926802

Courtesy of BMW OF NORTH AMERICA, INC.

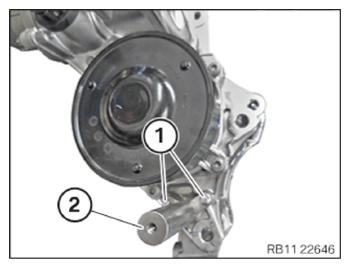

Loosen screws (1) .
Guide out the support (2) for the charge air line and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the support (2) for the charge air line and install it.

Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Charge air line support to coolant pump
M6X16	Tightening torque	8 Nm

G14926806

Courtesy of BMW OF NORTH AMERICA, INC.
