Removing the rear center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Remove rear seat bench

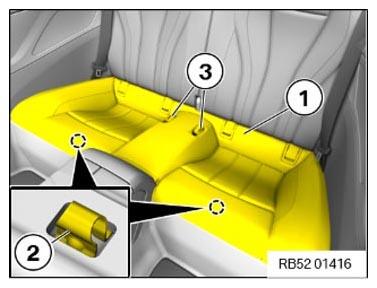

- Unclip the rear seat (1) upwards out of the clamps (2) and feed out the seat belt buckles (3).
NOTE:
If a belt lock is available on the safety belt, the screw on the strap fitting does not have to be loosened.

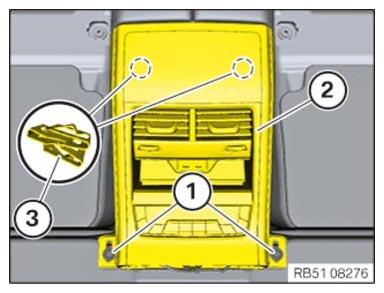

- Loosen nuts (1).
- Release center console trim (2) up at the clamps (3).
- Release wiring harness from the center console trim at the back (2) and disconnect the plug connections.
- Remove center console rear trim (2).
