Partially remove the luggage compartment wheel arch trim panel on the right
Removing the emergency release handle for the tailgate:
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

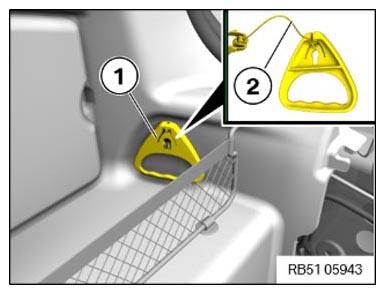

- Loosen the emergency release handle (1) for the tailgate from the holder.
- Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

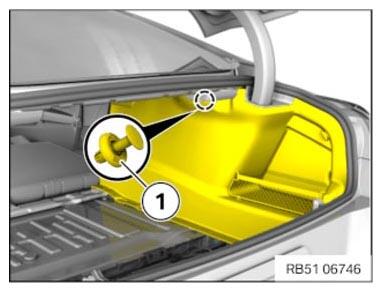

- Loosen expanding rivet (1).

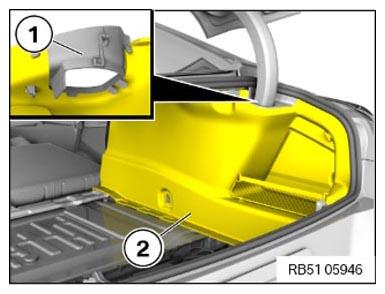

- Release the hinge cover (1) from the right luggage compartment wheel arch trim panel (2) and leave it hanging on the hinge bracket.
- Feed out the right luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid and detach it in the rear area.
