Installing the water channel on the tail light

Check

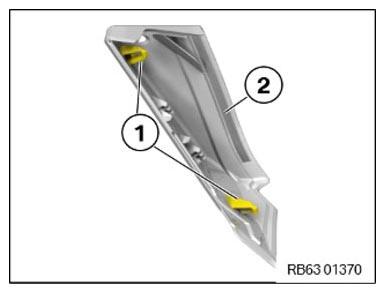

• Check the detents (1) of the water channel on the tail light (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detent is damaged.

Measure

• Replace the water channel on the tail light (2).

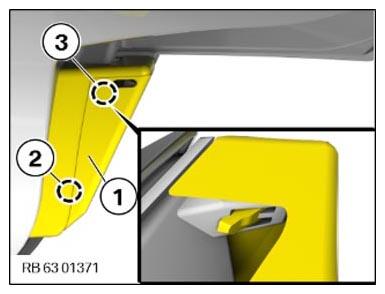

• Fit the water channel on the tail light (1).
• Clip in the water channel on the tail light (1) with the detents (2) and (3).
