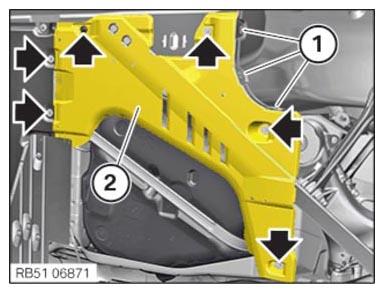

Installing tank cover
- Feed in and position the tank cover (2).
- Tighten all bolts and nuts (arrows).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Undershield |
| Screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
