Install the trim panel for the storage shelf

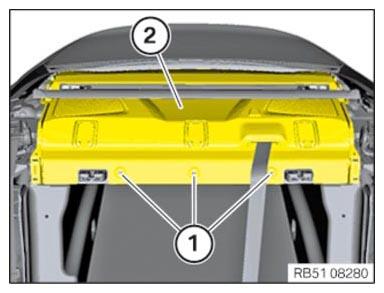

• Install the trim panel for the rear shelf (2) and feed in the safety belt.
• Connect existing plug connections.
• Feed in the trim panel for the rear shelf (2) at the rear guides and position it correctly.
• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

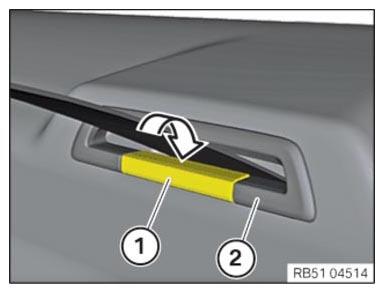

• Insert the seat belt finisher strip (2).
• Clip in the cover (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

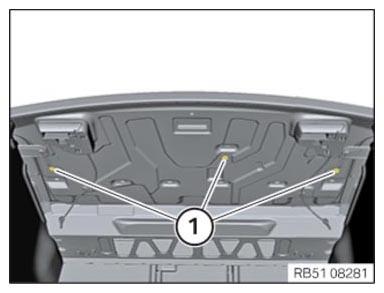

• Tighten the screws (1) on the roller sunblind from the cargo area.

TIGHTENING TORQUE SPECIFICATION

Roller sunblind
Screw	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
