Partially remove both wheel arch covers in front

NOTE: Procedure shows left component only. Procedure on the right side is identical.

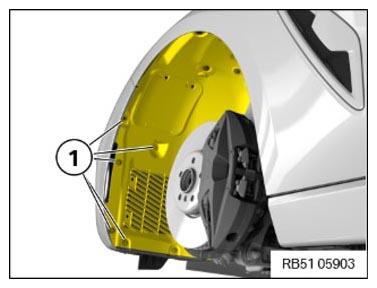

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Loosen screws (1).
• Fold the front wheel arch trim panel to one side.
