Installing the illuminated front sill trim

NOTE: Procedure shows left component only. Procedure on the right side is identical.

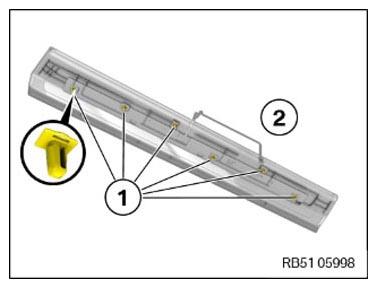

• Check whether the clips (1) on the front illuminated sill trim (2) are missing or are damaged, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

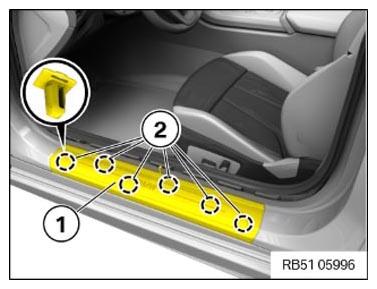

• Position the front illuminated sill trim (1) and feed in the cable.
• Clip in the front illuminated sill trim (1) with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

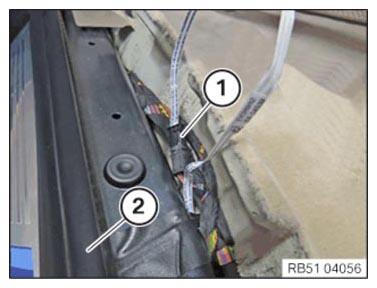

• Connect plug (1).
• Mount the edge protection seal (2) in area of the cable.

Courtesy of BMW OF NORTH AMERICA, INC.
