Install the front section of the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Replacement:

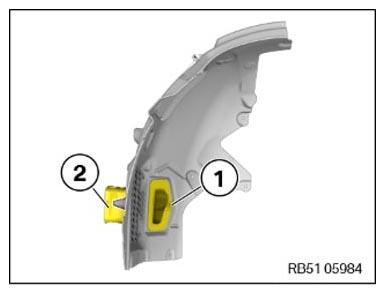

Position the brake ventilation duct (2).
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Brake ventilation duct on front wheel arch cover front section | ||
|---|---|---|
| Hexagon bolt for thermoplastic | Tightening torque | 3 Nm |
NOTE:

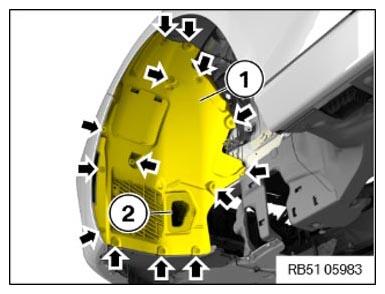

To provide a better overview: Schematic diagram with partially hidden components.
- Guide in front section (1) of the wheel arch cover at the front together with the brake ventilation duct (2).
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATION
| Front wheel arch cover front section on body | ||
|---|---|---|
| Hexagon bolt for thermoplastic | Tightening torque | 3 Nm |
