Install right headlight

Install headlight

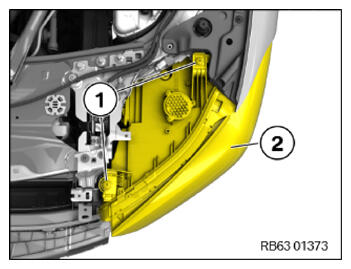

• Carefully feed in the front headlight (2)  from the front.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Front light combination, top
  Oval-head screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Front light combination, bottom
  Oval-head screw	Tightening torque	5 Nm

• Connect connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TOPPING AIR DUCT .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
• Refer to INSTALLING CENTER RADIATOR GRILLE .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to PROCESSING THE LED HEADLIGHT SERVICE TEST MODULE .
• Refer to ADJUSTING HEADLIGHTS .
