Remounting the headlight seal
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the seal on the headlight

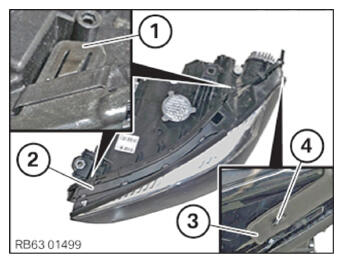

- Detach the seal (3) from the stop (4) .
- Detach the snap-in lugs (1) and remove the seal (2) from the headlight.
Install the seal on the headlight
- Position the seal (2)
on the headlight and engage it in the snap-in lugs (1)
.
The snap-in lugs (1) must engage audibly.
- Connect the seal (3) with the retainer pin (4) .
Follow-up work
- Refer to INSTALLING HEADLIGHT .
- Refer to INSTALLING TOPPING AIR DUCT .
- Refer to INSTALLING FRONT BUMPER COVER .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to PROCESSING THE LED HEADLIGHT SERVICE TEST MODULE .
- Refer to ADJUSTING HEADLIGHTS .
