Remounting the LED fan

Removing the LED fan

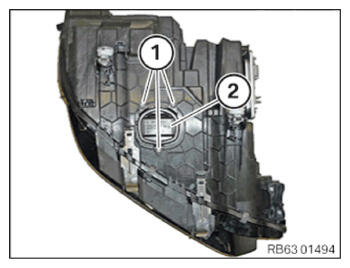

• Loosen screws (1)  .
• Remove protective cap (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out the LED fan (1)  in an upwards direction.
• Unlock and disconnect connector (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing LED fan

• Feed in the guide from the LED fan (1)  into the intake (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

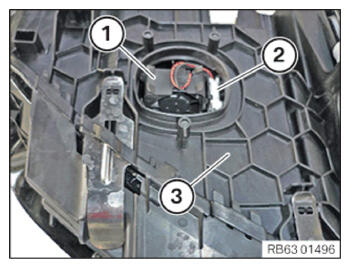

• Attach and lock the connector (2)  from the LED fan (1)  .

  Ensure correct cable routing in the headlight (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

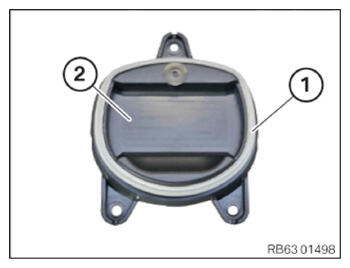

• Check the seal (1)  of the cover (2)  for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cover flap (2)  on the headlight.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Cover cap to headlight
  Screw	tightening torque	1.5 Nm
