Topping up the rear differential fluid
NOTE:
TECHNICAL INFORMATION
Rear differential fluid must be shaken (mixed) prior to use so that the additive distributes evenly in the oil.
Filling capacity for the rear axle differential must be observed!
Filling up to the lower edge of the oil filler opening would overfill the rear axle differential.
Rear differential fluid must be shaken (mixed) prior to use so that the additive distributes evenly in the oil.
Filling capacity for the rear axle differential must be observed!
Filling up to the lower edge of the oil filler opening would overfill the rear axle differential.
NOTE:
TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
- Use special tool 2 460 340 for topping up.
- To top up a defined (measured) oil quantity, first fill hose (1) with oil. To do this, connect adapter (2).
Supplement the rear differential fluid change/oil level with oil gun
NOTE:
TECHNICAL INFORMATION
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.
- Follow repair instructions!

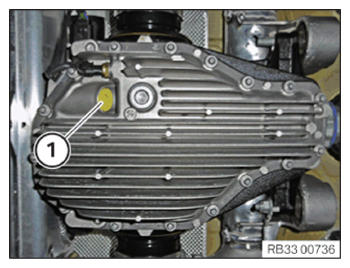

- Release the oil filler plug (1).
- Shake (mix) the rear differential fluid before use.
- Measure the required filling capacity and top up the rear differential fluid.TECHNICAL DATA SPECIFICATION
Rear differential fluid Filling capacity (shake/mix rear axle differential oil before use) 1 l - Replace (1) screw plug.
Parts: Plug
- Tighten the oil filler plug (1).TIGHTENING TORQUE SPECIFICATIONS
Screw plug on final drive cover M22
Replace screw plug with O-ring.Tightening torque 45 Nm
