Installing the front brake pad wear sensor

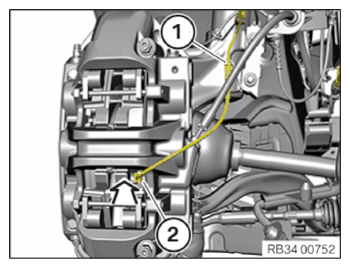

• Hook the cable of the brake pad wear sensor in the holder.
• Install the brake pad wear sensor (2) in the direction of arrow in the brake pad and ensure its correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

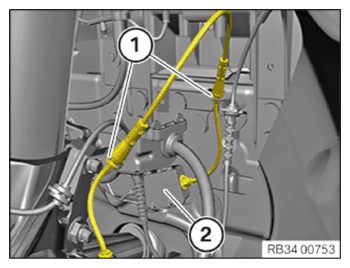

• Attach cable of brake pad wear sensor in holders (1).
• Connect connectors and lock.
• Close sealing cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
