Installing the rear convertible roof brace

CAUTION: Folding up of convertible top through loss of pressure in hydraulic cylinders.
Injury hazard! Injury hazard by trapping!

When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

Courtesy of BMW OF NORTH AMERICA, INC.

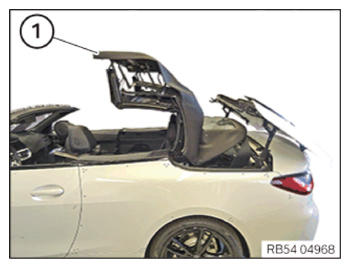

Bring the convertible top (1) to the half opened position.
Secure the convertible top (1) from collapsing by using the support 2 452 010 if necessary.

NOTE: Perform the steps on the left and right side.

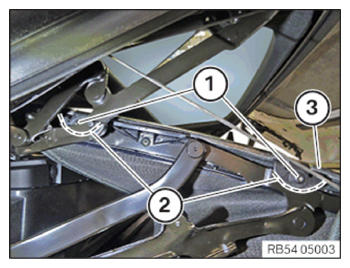

Feed in and position the convertible roof brace (3) with the help of a support person.
Position the convertible roof brace (3) on the marks in the areas (2).
Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Convertible roof brace to hood linkage
Oval-head screw	Tightening torque	8 Nm
