Installing the convertible top latch

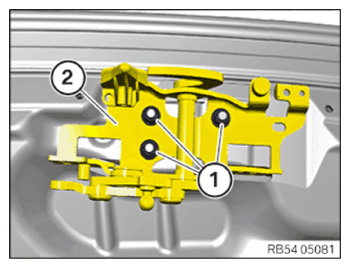

• Position the convertible top latch (2).
• Turn nuts (1) until hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

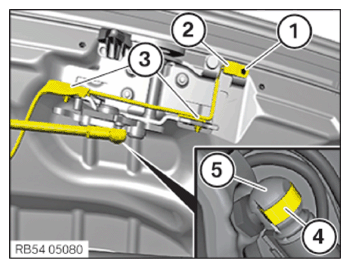

• Position the ball head (5) and clip it in.
• Make sure that the retaining clip (4) engages correctly.
• Position the Hall effect sensor (2) and clip the wiring harness and cable bracket (3) in.
• Fasten blind rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

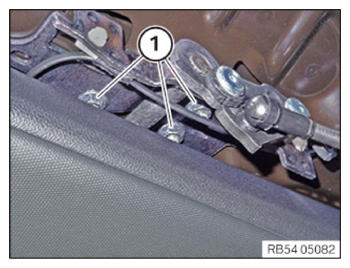

• Close soft top completely.
• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

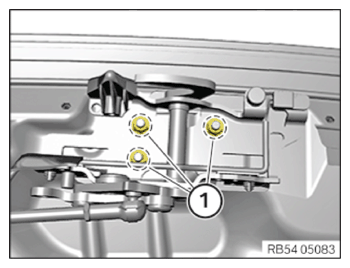

• Open soft top.
• Tighten the nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONVERTIBLE TOP BOW, FRONT .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to ADJUSTING THE REAR SIDE WINDOW .
