Installing the base plate

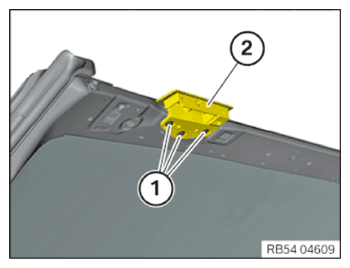

- Position the base plate (2) .
- Replace screws (1)
.
Parts: Screws
- Screw in the screws (1) until the base plate (2) can still be shifted.
- Close soft top.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Base plate to window frame | ||
| Oval-head screw | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE TRIM ON THE UPPER WINDSHIELD PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
