Installing the front side headlining

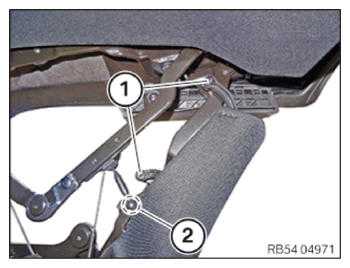

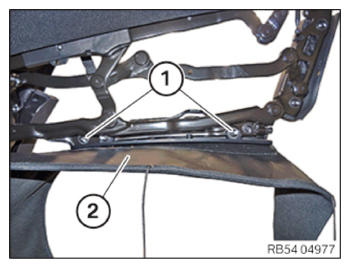

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Headlining support to hood linkage
Torx bolt	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Headlining support to hood linkage
Torx bolt	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

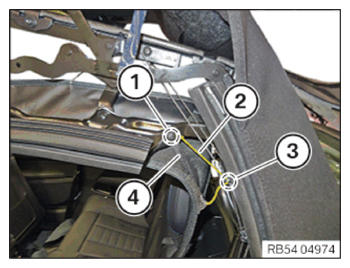

Clip in the ball head (2).
Feed in and position the tension cable (2).
Fasten blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

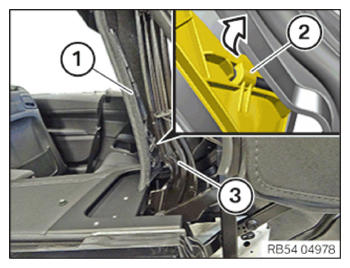

Position the side section (1) of the headlining on the convertible top linkage (3) and snap it into the detent (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

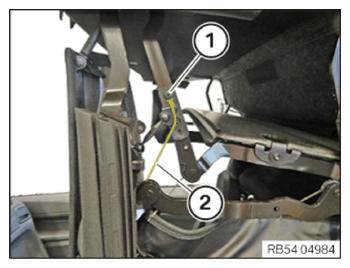

Feed in the tension cable (1) through the retaining tab (2) on the convertible top bow.

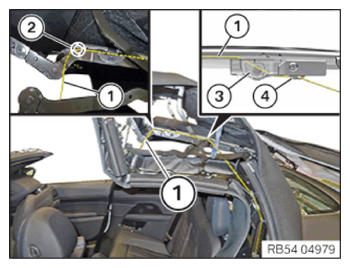

Feed in the tension cable (1) on the guide (3) and the retaining tab (4) using auxiliary materials.

Courtesy of BMW OF NORTH AMERICA, INC.

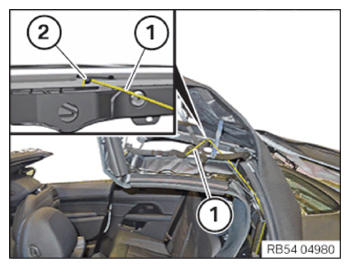

Feed in the tension cable (1) on the retaining tab (2) on the convertible top bow.

Courtesy of BMW OF NORTH AMERICA, INC.
Route the tension cable (1) (yellow) and the tension cable (2) (blue) as pictured below.

Courtesy of BMW OF NORTH AMERICA, INC.

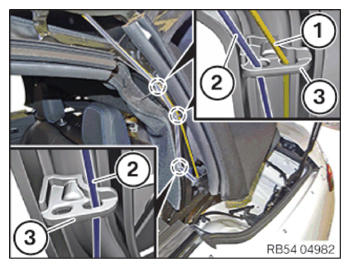

Feed in the tension cables (1) and (2) on the guides (3) on the convertible top linkage as pictured.

Courtesy of BMW OF NORTH AMERICA, INC.

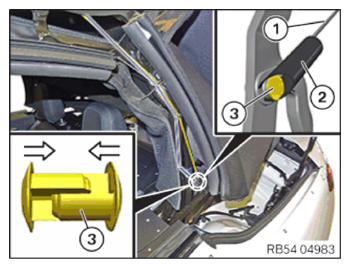

Position the tension cables (1) with the rubber grommet (2) on the convertible top linkage.
Mount the new Jetpress plastic rivet (3).

Courtesy of BMW OF NORTH AMERICA, INC.

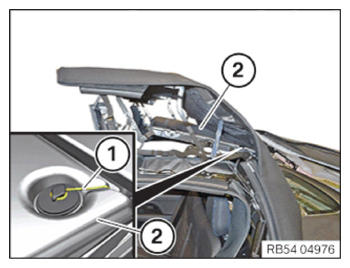

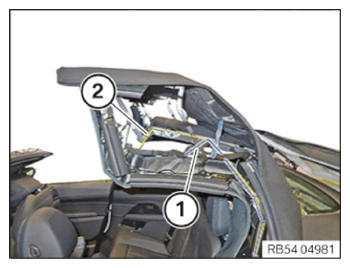

Hook in the tension cable (1) on the convertible top bow (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and position the tension cable (2) on the guide (3).
Position the retaining strap (4).
Fasten blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
