Remove slider for sunblind
Preliminary work
- Refer to REMOVING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
- Refer to REMOVING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING SIDE TRIM PANEL, REAR LEFT AND RIGHT .
- Refer to REMOVING THE B-PILLAR TRIM PANEL AT LEFT AND RIGHT .
- Refer to TRIMMING OF THE 3RD BRAKE LIGHT .
- Refer to LOWERING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
- Refer to REMOVING SLIDE/TILT SUNROOF COMPLETELY .
- Refer to REMOVING CROSS MEMBER .
- Refer to REMOVING ROLLER SUNBLIND FOR THE PANORAMA GLASS ROOF .
NOTE:
Description is for left component only. Procedure on the right side is identical.

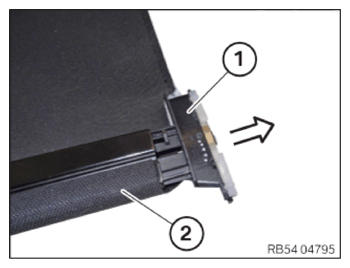

- Pull out the slider (1) from the roller sunblinds (2) in the arrow direction.
