Install wind deflector

Precondition

The glass slide/tilt sunroof panel is open.

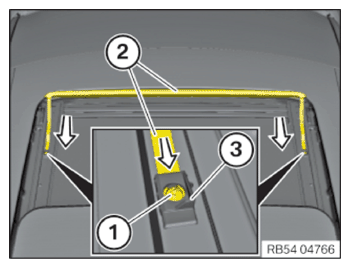

• Feed in the wind deflector (2) on the wind deflector mount (3) from the front (arrow direction).
• Screw in the screws (1) a few turns, but do not yet tighten.

  Courtesy of BMW OF NORTH AMERICA, INC.

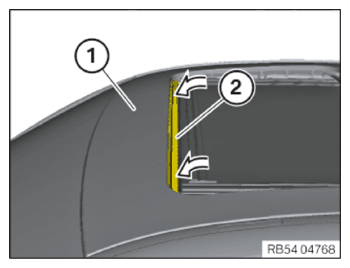

• Clip in the wind deflector (1) in area (2) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

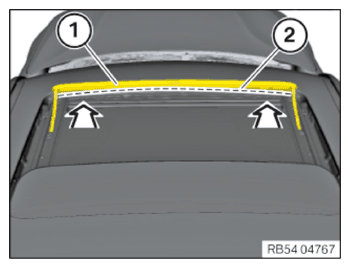

• Press the wind deflector (2) down by hand (arrow direction). While doing so, ensure that the wind deflector (2) is fully accessible and does not collide with the roof outer skin (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

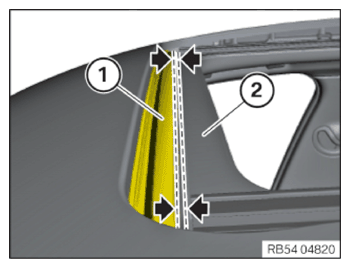

• Position the wind deflector (1) so there is a distance of approx. 2 mm (arrow) to the drip molding of the slide/tilt sunroof frame (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

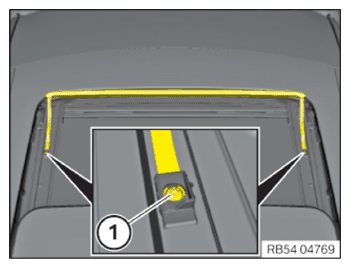

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
