Installing the charge air duct for 1-3 cylinders

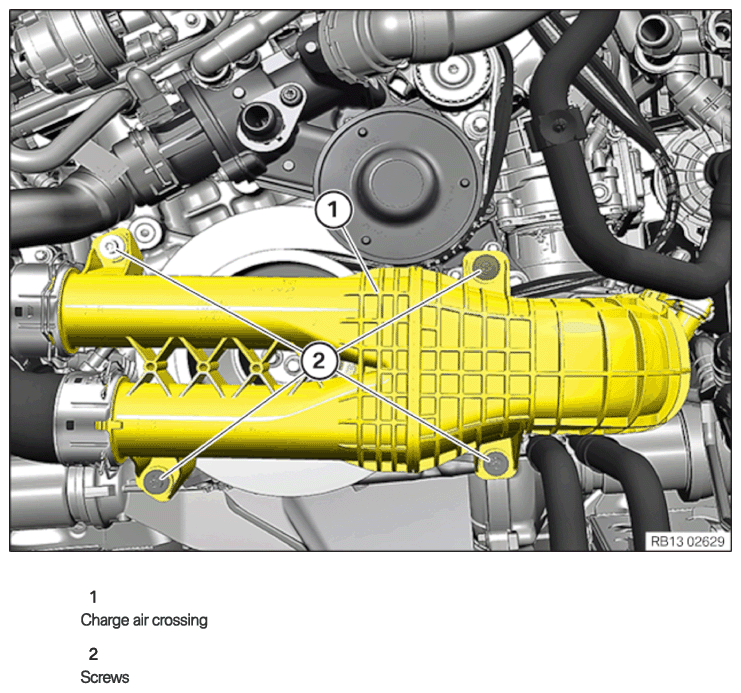

Charge air crossing
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Make sure that the guide sleeves (1)
are available and have been installed correctly.
- Make sure that the guide sleeves (1)
are available and have been installed correctly.
- Check the seal (1) for damage, replace if necessary.
Replacing the damaged seal
NOTE:
TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Use of sharp or pointy tools for installation or removal is prohibited.
- Remove damaged seal.

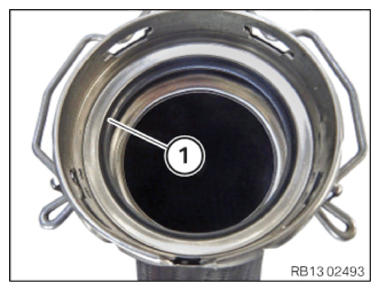

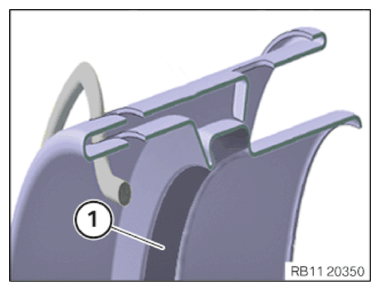

- Clean the gasket groove (1)
with a dry cloth.
The gasket groove (1) must be clean.
- Replace gasket.
Parts: Gasket
- Install the seal dry without lubricant or mounting agent.
NOTE:
TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.
- Thread in seal and install.

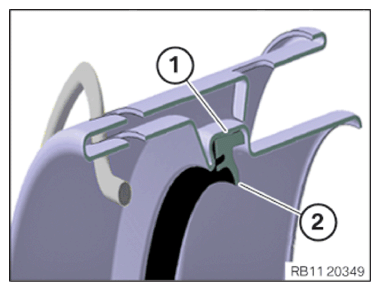

- Make sure that the seal is installed correctly in the gasket groove (1) .
- Make sure that the sealing lip (2) is directed to the inside as shown.

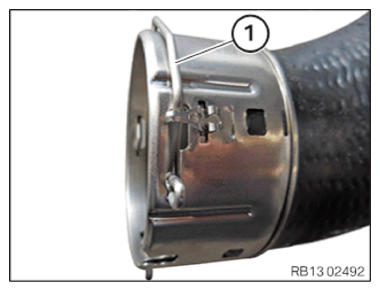

- Lock clamp (1)
.

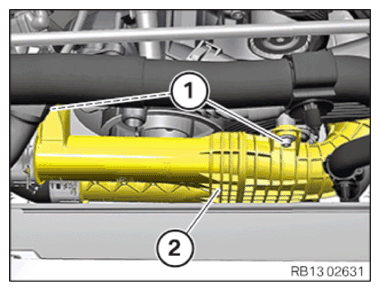

- Insert the charge air duct for 1-3 cylinders (2) and install it.

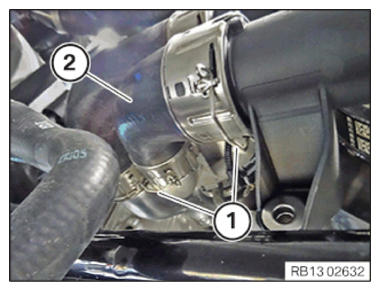

- Make sure that the clamps (1)
engage audibly.

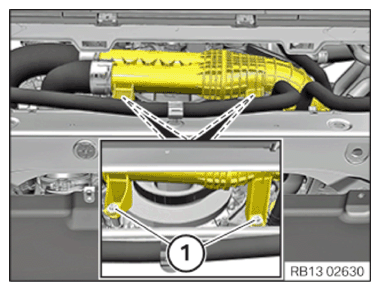

- Insert the charge air crossing (2) and position it.

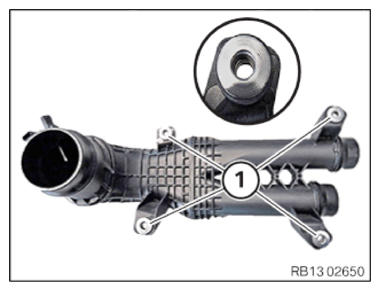

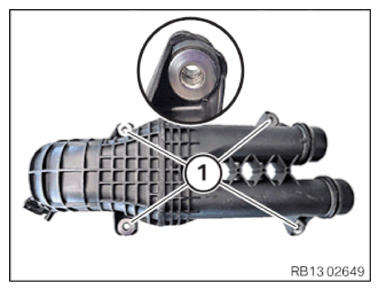

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Charge air duct on spacers | ||
|---|---|---|
| M6x25 screw | tightening torque | 10 Nm |
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Charge air duct on spacers | ||
|---|---|---|
| M6x25 screw | tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING FAN COWL .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
