Installing the tailgate seal

• Remove sealant residue from the sheet metal flange.
• Clean sheet metal flange.

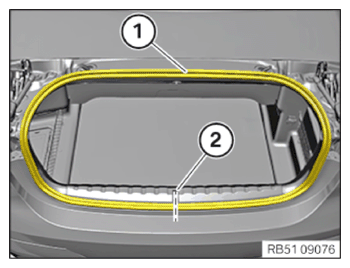

• Replace tailgate seal (1).

  Parts:  Tailgate seal

• Mount tailgate seal (1) starting from the center at the top.

  Make sure that sealing joint (2) is at designated position.

• Ensure that tailgate seal (1) rests correctly on all the adjacent trim panel components.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
