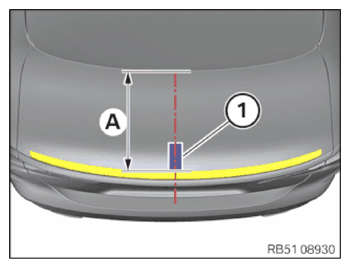

Determine the correct position of the rear spoiler
- Glue on the adhesive tape (1)
according to the dimension (A)
in the center on the tailgate.
Dimension (A) = 360 mm
Adhesive tape (1) must not be found on the bonding surface of the rear spoiler.
CONSUMABLE SPECIFICATIONYellow plastic adhesive tape 83199410979 - Indicate the center of the tailgate on the adhesive tape (1) .
