Installing the insert in the door sill trim panel

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

Position insert (1) on door sill trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

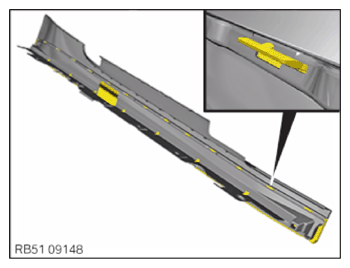

Engage insert (1) in detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

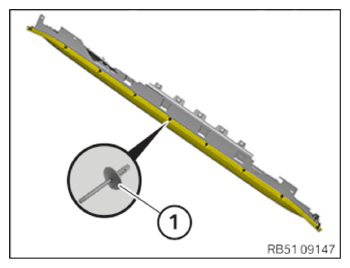

Mount blind rivets (1) using special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DOOR SILL TRIM PANEL .
Refer to INSTALLING THE FRONT SILL TRIM .
Refer to INSTALLING TANK COVER .
Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
Refer to INSTALLING THE FRONT UNDERSHIELD .
