Installing the right lock supports

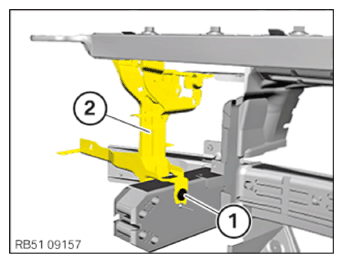

Installing the lock support

• Install lock support (2)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Vertical connection to deformation element
  Hexagon screw	Tightening torque	21NNm

  Courtesy of BMW OF NORTH AMERICA, INC.

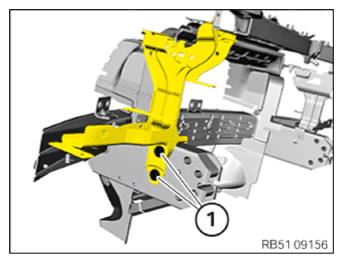

• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Vertical connection to deformation element
  Hexagon screw	Tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

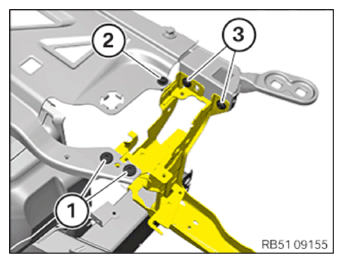

• Tighten the screws (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Rear cross connection at the top of the hood latch support
  Flat-head screw M6x20	tightening torque	11.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Cross connection, top
  M6x20	Tightening torque	11.8 Nm

• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Cross connection at the top to the lock support
  Oval-head screw	Tightening torque	28 Nm

Follow-up work

• Refer to INSTALLING THE FRONT END .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE LEFT AND RIGHT AIR DUCT .
• Refer to FASTENING THE LEFT AND RIGHT EXTERNAL RADIATOR .
• Refer to INSTALLING THE PEDESTRIAN PROTECTION SENSOR .
• Refer to INSTALLING THE LEFT AND RIGHT HEADLIGHT .
• Refer to REPLACING UPPER ADAPTER FOR BUMPER TRIM PANEL .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING HOOD LOCK .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to ADJUSTING HEADLIGHTS .
