Removing the front carpet
Preliminary work
- Refer to REMOVING THE LEFT AND RIGHT FRONT SEAT .
- Refer to REMOVING ACCELERATOR PEDAL MODULE .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE SPEAKER TRIM ON THE LEFT AND RIGHT CENTER BASS .

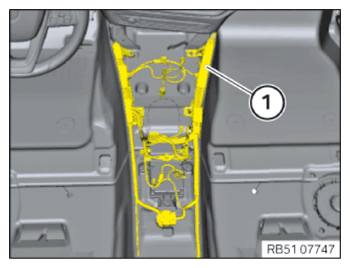

- Unclip the wiring harness (1)
from the brackets and unlock and separate the plug connectors.

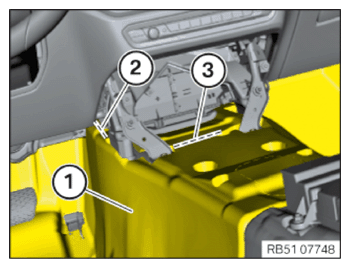

- Cut the carpet (1) along the dashed line (2) to the left and right of the heating and air-conditioning unit.
- Cut the carpet (1)
along the dashed line (3)
in front of the heating and air-conditioning unit.

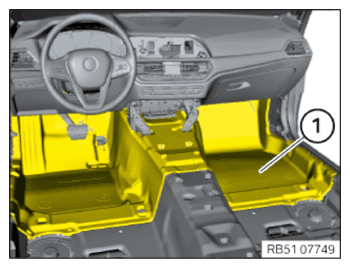

- Feed out the carpet (1)
and remove from the vehicle.
