Installing the front carpet

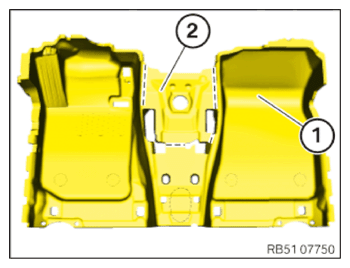

• Lay removed carpet on the new carpet (1)  and transfer cuts to new carpet (1)  .
• Cut off the highlighted area (2)  on the new carpet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

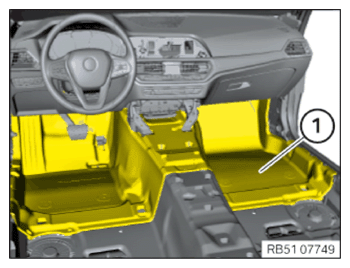

• Install the carpet (1)  in the car.
• Make sure the carpet (1)  is positioned correctly at all adjacent parts and in area of heating and air-conditioning unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

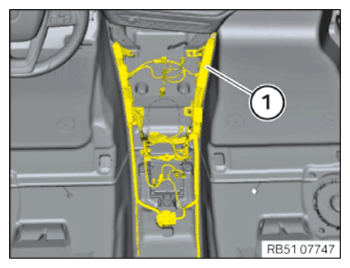

• Clip in the wiring harness (1)  on to the brackets and connect and lock the connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM ON THE LEFT AND RIGHT CENTER BASS .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING ACCELERATOR PEDAL MODULE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT SEAT .
