Installing the trim panel on the through-loading system

• Guide in and correctly position coolant pump.

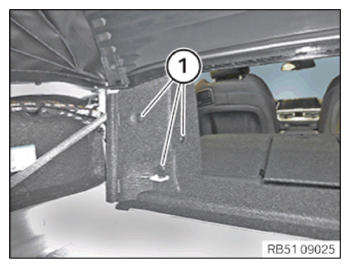

• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

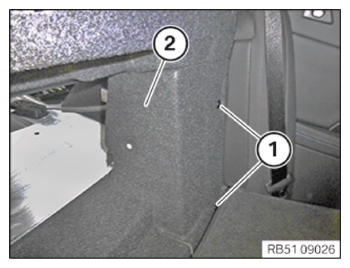

• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
