Install luggage compartment wheel arch trim panel on right

If installed: Connect the plug connection of the 12 V connection (additional work with storage package equipment specification)

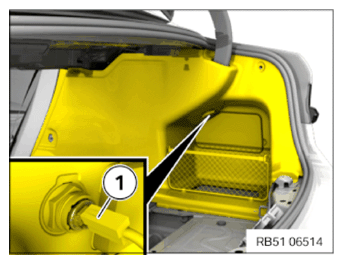

• Connect and lock the connector (1) of the 12V connection.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the emergency release handle for the tailgate (additional work for US version)

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

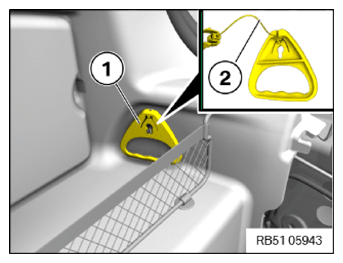

• Attach the Bowden cable (2).
• Fasten the emergency release handle (1) for the tailgate to the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

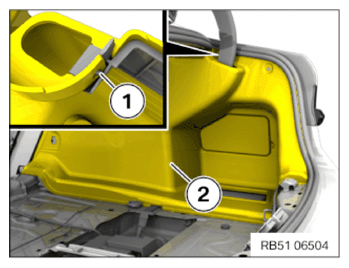

• Feed in the luggage compartment wheel arch trim panel (2) under the side trim panel in the rear passenger compartment and the sealing lip for the trunk lid.
• Feed in the lug of the luggage compartment wheel arch trim panel (2) on the outer side of the hinge into the stop on the trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

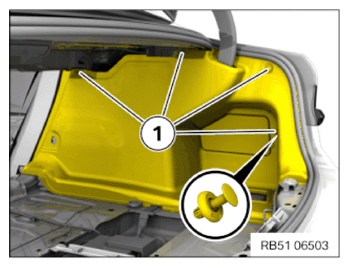

• Secure expanding rivet (1).
• Put up the right rear seat backrest.

  Courtesy of BMW OF NORTH AMERICA, INC.

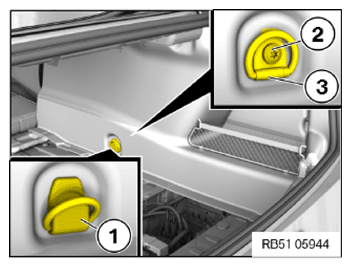

• Position the lashing point (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Lashing point to body
  tightening torque		19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install cover (1).

Follow-up work

• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
