Removing the center ventilation grille with integrated air conditioning control panel

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .

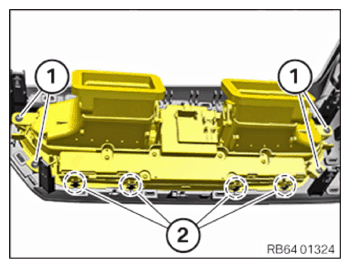

Loosen screws (1).
Disengage detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

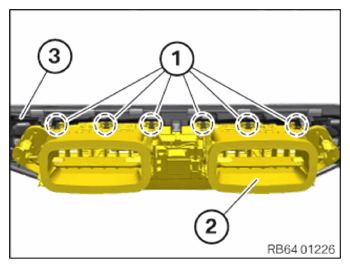

Disengage the detent (1) on the ventilation grille (2).
Remove the ventilation grille (2) with the integrated air conditioning control panel from the decorative strip (3).

Courtesy of BMW OF NORTH AMERICA, INC.
