Installing the right ventilation grille

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Description is for left component only. Procedure on the right side is identical.

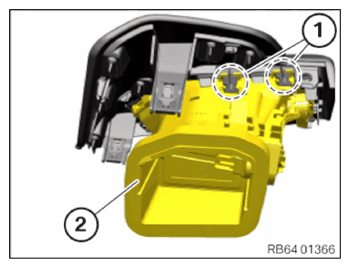

Place the ventilation grille (2) on the right side of the decorative strip (3) and position it correctly.
Engage the detents (1) onto the ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

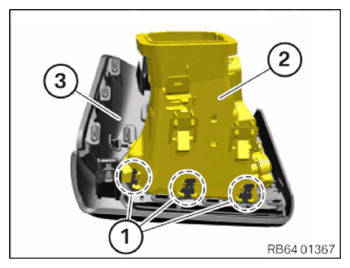

Engage the detents (1) onto the ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
